The CBE Kit Large 190BC Black is the most powerful system in the CBE Black Series and has been specially developed for users who want maximum independence and energy efficiency.
With 190 W of power and innovative back-contact technology, this kit offers maximum yields and an outstanding power-to-area ratio – ideal for larger motorhomes or off-road campers.

The set consists of the high-quality CBE MFBC190 solar module, the advanced PRM400 MPPT charge controller, a sturdy aluminium mounting system and all the cables and connection components required for a safe and durable installation.

The back-contact module is characterised by minimised electrical losses and excellent temperature resistance. In combination with the PRM400 MPPT controller, maximum energy yield is achieved at all times.
The controller also has a Bluetooth interface that allows connection to the ONDA Smart System app, enabling convenient real-time monitoring of current, voltage and charge status.

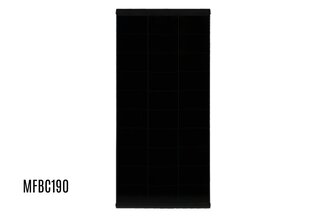

Technical data for photovoltaic module (MFBC190)

• Power: 190 W, ideal for 12 V systems
• Dimensions: 1,300 × 670 × 30 mm, weight 9.4 kg
• Cell type: PERC back contact
• Voltage (open circuit): 21.60 V
• Current (short circuit): 10.84 A
• Voltage at rated power: 18.60 V
• Current at rated power: 10.22 A
• Robust black aluminium frame
• High weather resistance and impact resistance

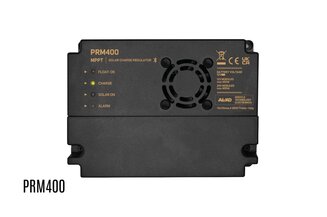

Technical data Solar charge controller (PRM400 MPPT)

• System voltage: 12 V
• Max. module power: 400 W
• Technology: MPPT – Maximum Power Point Tracking
• Max. charging current: 28 A
• Battery types: Lead-acid, gel, AGM, lithium
• Protection functions: Overcharging, deep discharge, short circuit, reverse polarity
• Bluetooth function with "ONDA Smart System" app for real-time monitoring & firmware updates
• Automatic shutdown in darkness

Product advantages / USP

• Maximum efficiency thanks to back-contact cell technology
• Intelligent energy management with MPPT controller
• Bluetooth monitoring via ONDA app
• Robust and weatherproof thanks to high-quality materials
• Complete package – ready to use and easy to install

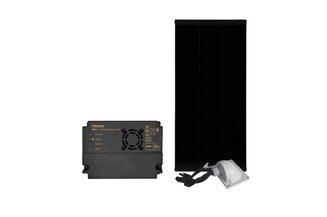

Scope of delivery

• 1 × CBE MFBC190 photovoltaic module (190 W, black)
• 1 × CBE PRM400 MPPT solar charge controller
• 1 × KFPB670 mounting kit (aluminium, black)
• 1 × Complete cable set KT6K-C50 (incl. 5 m UV-resistant cable with plug connections)
• 1 × Waterproof roof feed-through with rubber seal

Suitable for

• Large motorhomes and off-road campers
• 12 V electrical systems with lead-acid, gel, AGM or lithium batteries
