The CBE Kit Slim Plus 140 Standard is the particularly space-saving version of the Standard series and combines high performance with a compact design.
With 140 W of power, the system reliably supplies energy for lighting, refrigerators, pumps and other 12 V consumers – ideal for motorhomes where roof space is limited.

The CBE MF140S solar module has a particularly slim design and features state-of-the-art PERC cell technology, which ensures high energy yield even in low light conditions.
The integrated PRM400 MPPT charge controller automatically optimises the module's energy yield, protects the battery and extends its service life.

With robust aluminium brackets, a pre-assembled cable set and a waterproof roof feed-through, the set is ready to install and durable.
Its simple, modern design blends harmoniously into any vehicle roof – technically efficient, visually unobtrusive.

Technical data for photovoltaic module (MF140S)

• Power: 140 W, ideal for 12 V systems
• Dimensions: 1,345 × 530 × 30 mm, weight 7.5 kg
• Cell type: PERC (Passivated Emitter and Rear Cell)
• Voltage (open circuit): 21.78 V
• Current (short circuit): 7.76 A
• Voltage at rated power: 19.14 V
• Current at rated power: 7.32 A
• Robust, silver anodised aluminium frame
• UV and weather resistant

Technical data for solar charge controller (PRM400 MPPT)

• System voltage: 12 V
• Max. module power: 400 W
• Technology: MPPT – Maximum Power Point Tracking
• Max. charging current: 28 A
• Battery types: Lead-acid, gel, AGM, lithium
• Protective functions: overcharging, deep discharge, short circuit, reverse polarity
• Bluetooth function with "ONDA Smart System" app for real-time monitoring
• Automatic shutdown in darkness

Product advantages / USP

• Slim design – ideal for roofs with limited space
• Maximum energy yield thanks to MPPT technology
• High-quality materials – aluminium, UV-resistant cables
• Bluetooth compatibility for control via app
• Easy installation thanks to pre-assembled cable set

Scope of delivery

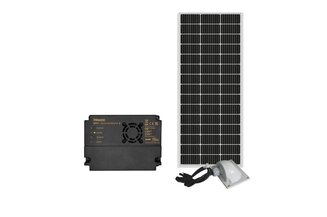

• 1 × CBE MF140S photovoltaic module (140 W)
• 1 × CBE PRM400 MPPT solar charge controller
• 1 × KFPN530 mounting kit (aluminium, silver)
• 1 × Complete cable set KT6K-C50 (incl. 5 m UV-resistant cable with plug connections)
• 1 × Waterproof roof feed-through with rubber seal

Suitable for

• Motorhomes, caravans and campervans
• 12 V electrical systems with lead-acid, gel, AGM or lithium batteries
