Kit Medium Plus 140 Black Smart

The CBE Kit Medium Plus 140 Black Smart is the intelligent premium solar solution for motorhomes with medium energy requirements.
Featuring the powerful CBE MFB140 photovoltaic module (140 W) and the advanced PRM400 MPPT solar charge regulator with Bluetooth, this kit delivers maximum efficiency, high safety standards and convenient system monitoring via smartphone.

The solar module is equipped with modern PERC cell technology, ensuring stable and reliable energy production even in low-light conditions or at high temperatures.
The PRM400 MPPT regulator automatically optimizes charging performance, providing efficient and battery-friendly charging. Thanks to the integrated Bluetooth interface and the ONDA Smart System App, charging status, power flow and system data can be monitored in real time.

Robust black anodized aluminium mounting brackets, UV-resistant cables and a watertight roof gland ensure durability, safety and easy installation.
The elegant black design blends seamlessly into modern vehicle roofs, offering a technically advanced and visually discreet solution.

Technical Data – Photovoltaic Module (MFB140)

• Power output: 140 W, ideal for 12 V systems
• Dimensions: 1,116 × 670 × 30 mm, weight 8.0 kg
• Cell type: PERC (Passivated Emitter and Rear Cell)
• Open circuit voltage: 21.78 V | Short circuit current: 7.75 A
• Voltage at max. power: 19.14 V | Current at max. power: 7.31 A
• Robust black aluminium frame
• UV- and weather-resistant

Technical Data – Solar Charge Regulator (PRM400 MPPT – Smart)

• System voltage: 12 V
• Max. PV power: 400 W
• Technology: MPPT – Maximum Power Point Tracking
• Max. charging current: 28 A
• Battery types: Lead-acid, Gel, AGM, Lithium
• Protection functions: Overcharge, deep discharge, short circuit, reverse polarity
• Bluetooth interface for connection with the ONDA Smart System App
• Real-time monitoring of charging power, voltage and system status
• Firmware updates via app
• Automatic shutdown in the absence of sunlight

Product Benefits / USP

• Smart solar system with Bluetooth app monitoring
• Maximum energy yield thanks to MPPT technology
• Safe and battery-friendly charging
• Durable and weatherproof aluminium mounting and UV-resistant cables
• Elegant black design for modern vehicles

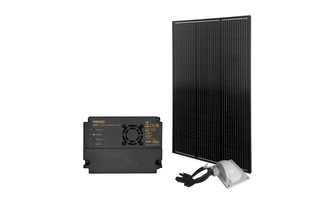

Scope of Delivery

• 1 × Photovoltaic module CBE MFB140 (140 W, black)
• 1 × Solar charge regulator CBE PRM400 MPPT with Bluetooth
• 1 × Mounting kit KFPB670 (black anodized aluminium)
• 1 × Complete cable kit KT6K-C50 (incl. 5 m UV-resistant cable with connectors)
• 1 × Watertight roof gland with rubber seal

Suitable for

• Motorhomes, campervans, caravans and boats
• 12 V onboard systems with lead-acid, gel, AGM or lithium batteries
